Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System

Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System
  • SellerRED Protools Store
  • Price ofUS $34.70 piece
  • Your PriceUS $34.70piece
  • ShippingFree Shipping
  • You SavesUS $0piece0% off
  • Ratings3.5 (6631)

Product Details

Shopping for a Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System with low price? Read about features, types, and other must-know topics in our Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System buying guide to make an informed choice. Buy greatest Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System Look for the Auto Manual Digital Multimeter Thermometer Voltmeter Tester Resistance AC DC Ohm +Dual-slope integrating A/D Converter System package that is greatest for you. Make a price comparison, discount promo, or free shipping before shopping.

Product Description

The Professional Auto-range Digital Multimeter is a powerful tool for debugging circuits with high performance, high accuracy with large LCD display measuring DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Duty Cycle Measurement, Triode, Diode and Continuity Test.
Designed function includes: unit signal displaying, relative value measuring, AUTO/MANUAL range switch, auto power off and warning function, auto negative polarity indication, overload protection, etc. This multimeter is most suitable for use on production lines or lab, R & D, maintenance and repairing work.

Features:
  • Designed for field professionals
  • 3 ¾ digit Large LCD Display
  • With stand, auto-off and buzzer
  • Low battery display indication
  • Automatic negative polarity indication
  • Manual and automatic ranging
  • Temperature measurements (-40~1000°C)
  • Full overload protection

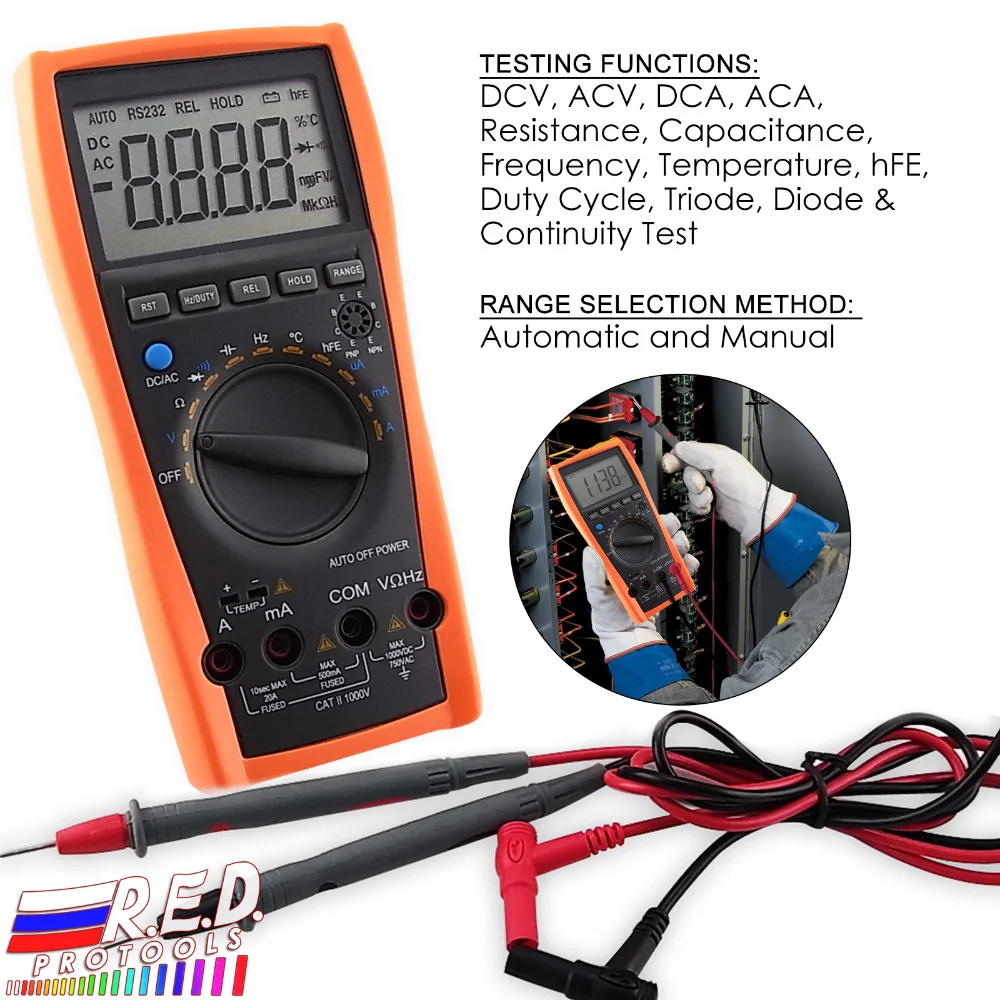

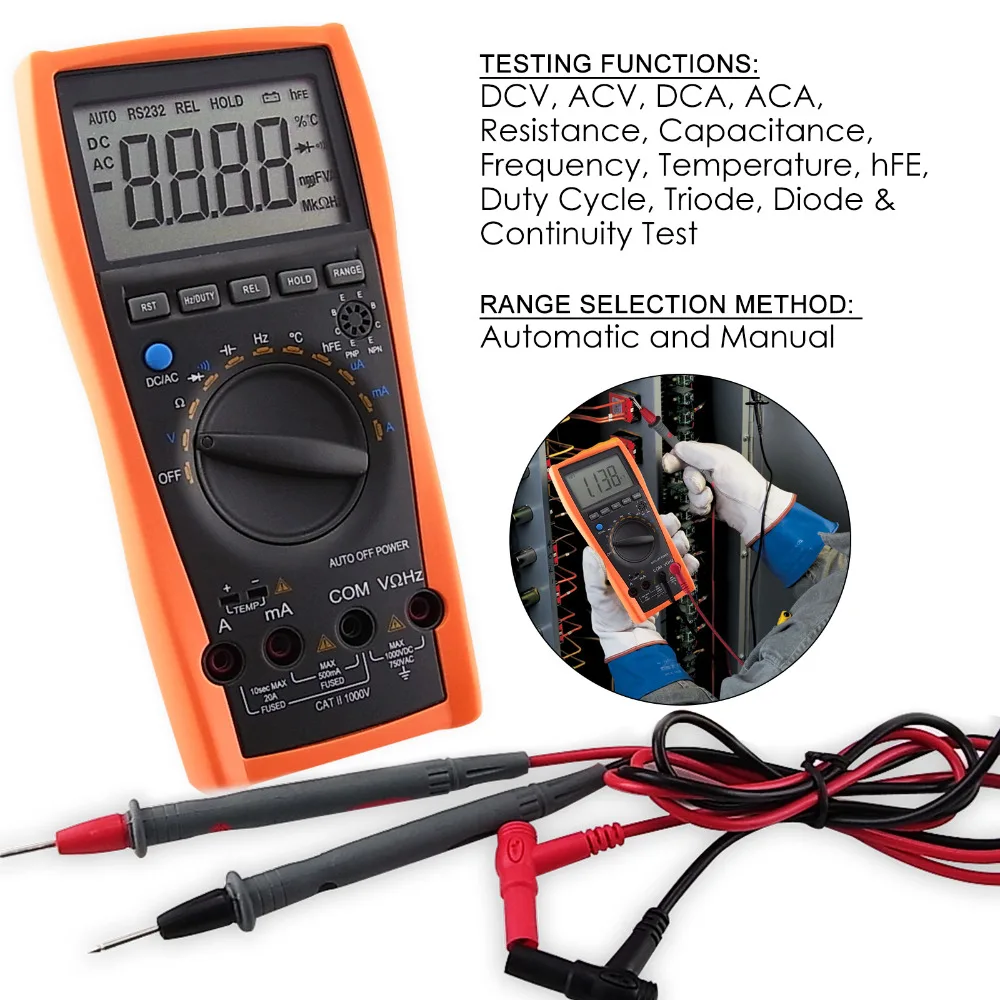

  • Perform test like DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, hFE, Duty Cycle, Triode, Diode and Continuity Test
  • Ergonomic case with protective rubber holster
Specifications:

  • Display: 3 ¾ digit Large LCD with a max readings of 3999
  • Measuring method: Dual-slope integrating A/D Converter System
  • Sampling Rate: approx. 3 Times / Second
  • Range Selection Method: Automatic and Manual
  • Polarity: Automatic Negative Polarity Indication
  • Over range indication: "OL" display
  • Operating Temperature: 0 ~ 40°C; Operating Humidity: <80% RH
  • Storage Temperature: -10 ~ 50°C; Storage Humidity: <80% RH
  • Low battery indicator
  • Power: 2 x 1.5V AAA batteries (included)

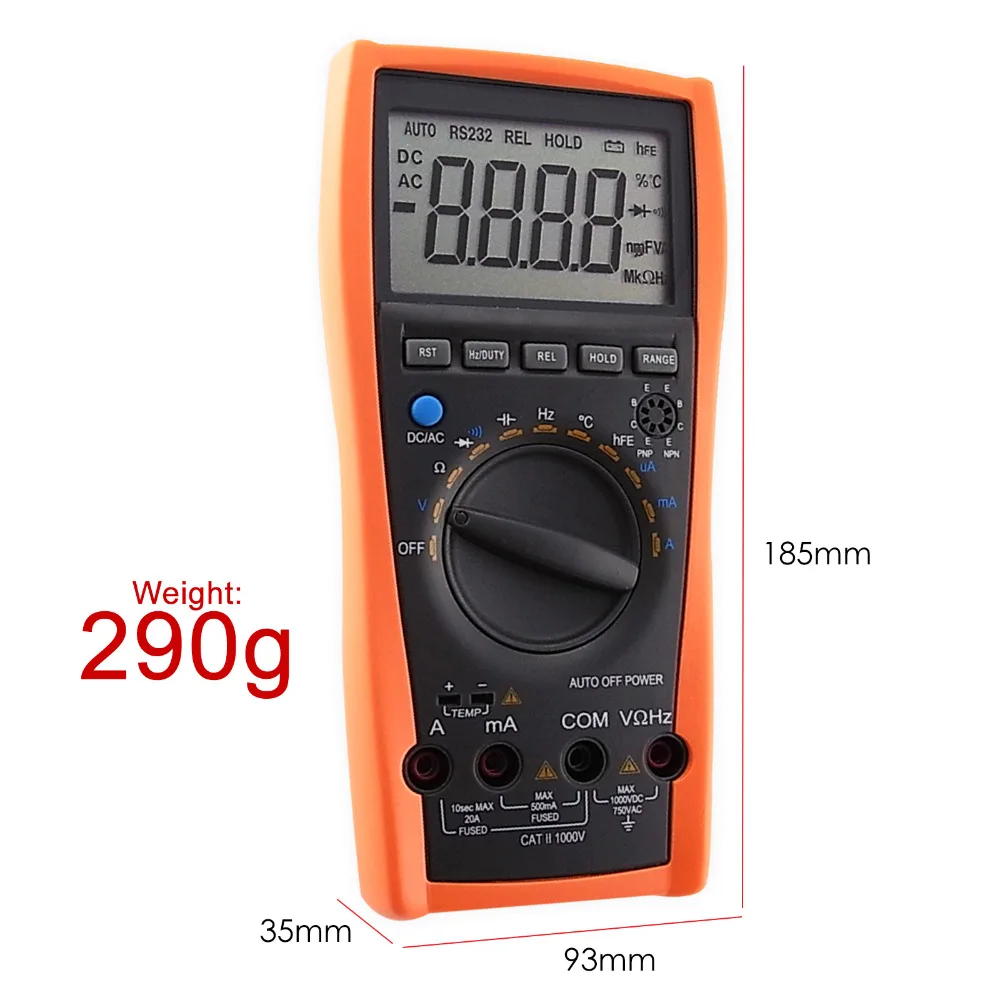

  • Dimensions: 185(L) x 93(W) x 35(H) mm
  • Weight: approx. 290g (including battery)

Technical Specification:
Accuracy is ±(percentage of reading + number of digit) at (23±5) °C, <75% RH.
DC Voltage

Range
Accuracy
Resolution
400mV
±(0.5%+4d)
0.1mV
4V
1mV
40V
10mV
400V
100mV
1000V
±(1.0%+4d)
1V

Input impedance: 400 mV range: more than 40MΩ ; other range: 10MΩ
Overload protection: 1000 V DC or 750V AC peak value
AC Voltage (only 400mV range has manual range)

Range
Accuracy
Resolution
400mV
±(1.5%+6d)
0.1mV
4V
±(0.8%+6d)
1mV
40V
10mV
400V
100mV
750V
±(1.0%+6d)
1V

Input impedance: 400 mV range: more than 40 MΩ ; other range: 10 MΩ
Frequency response: 750 v range: 40-100 Hz ; other range: 40-400 Hz
Overload protection: 1000 V DC / 750 V AC peak value
DCA

Range
Accuracy
Resolution
400uA
±(1.0%+5d)
0.1uA
4000uA
1uA
40mA
10uA
400mA
100uA
4A
1mA
20A
±(2.0%+5d)
10mA

Max. Measuring volt drop: 400mV under mA range, 200mV under A range.
Max. input current: 20A (less than 10 sec)
Overload protection: 0.5/250V fuse, 15A/250V fuse
ACA

Range
Accuracy
Resolution
400uA
±(1.5%+5d)
0.1uA
4000uA
1uA
40mA
10uA
400mA
100uA
4A
1mA
20A
±(2.0%+10d)
10mA

Max. Measuring volt drop: 400mV under mA range, 200mV under A range.
Max. input current: 20A (less than 10 sec)
Overload protection: 0.5/250V fuse, 15A/250V fuse
Frequency response: (40~100)Hz under 20A range, (40~400) Hz at other range.
Resistance

Range
Accuracy
Resolution
400Ω
±(0.8%+5d)
0.1Ω
4kΩ
±(0.8%+2d)
40kΩ
10Ω
400kΩ
100Ω
4MΩ
1kΩ
40MΩ
±(1.2%+5d)
10kΩ

Overload protection: 250V DC/AC Peak Value
Open circuit voltage: 400 mV
Capacitance

Range
Accuracy
Resolution
4nF
±(0.5%+20d)
1pF
40nF
±(3.5%+8d)
10pF
400nF
100pF
4uF
1nF
40uF
10nF
200uF
±(5.0%+8d)
100nF

Overload protection: 250V DC/AC Peak Value
Frequency

Range
Accuracy
Resolution
10Hz
±(0.5%+4d)
0.01Hz
100Hz
0.1Hz
1000Hz
0.1Hz
10kHz
1Hz
100kHz
10Hz
1MHz
100Hz
30MHz
1kHz

INPUT SENSOR: 0.7V
Overload protection: 250V DC/AC Peak Value
Diode and Continuity Test

Range
Description
Test Condition
Diode

Display read approx.forward voltage of diode
Forward DC Current approx 0.5mA Reversed voltage approx. 1.5V
Buzzer
Buzzer sounds if resistance between terminals V/Ω and COM is less than (50± 10) Ω
Open circuit voltage:0.5V

Overload Protection: 250 V DC/AC peak value
Warning: Do not input Voltage at the range for safety
hFE

Range
Description
Test Condition
NPN or PNP
0 ~ 1000
Basic Current is Approx. 15 µA. Vce is approx. 4.5V

Temperature

Range
Description
Test Condition
-40 - 1000 °C
< 400 °C ± (0.8% + 4)
≥400 °C ± (1.5% + 15)
1 °C

Thermocouple: K Type
Warning: Do not input any voltage at this range



gain-express-gainexpress-Multimeter-VC-97-set

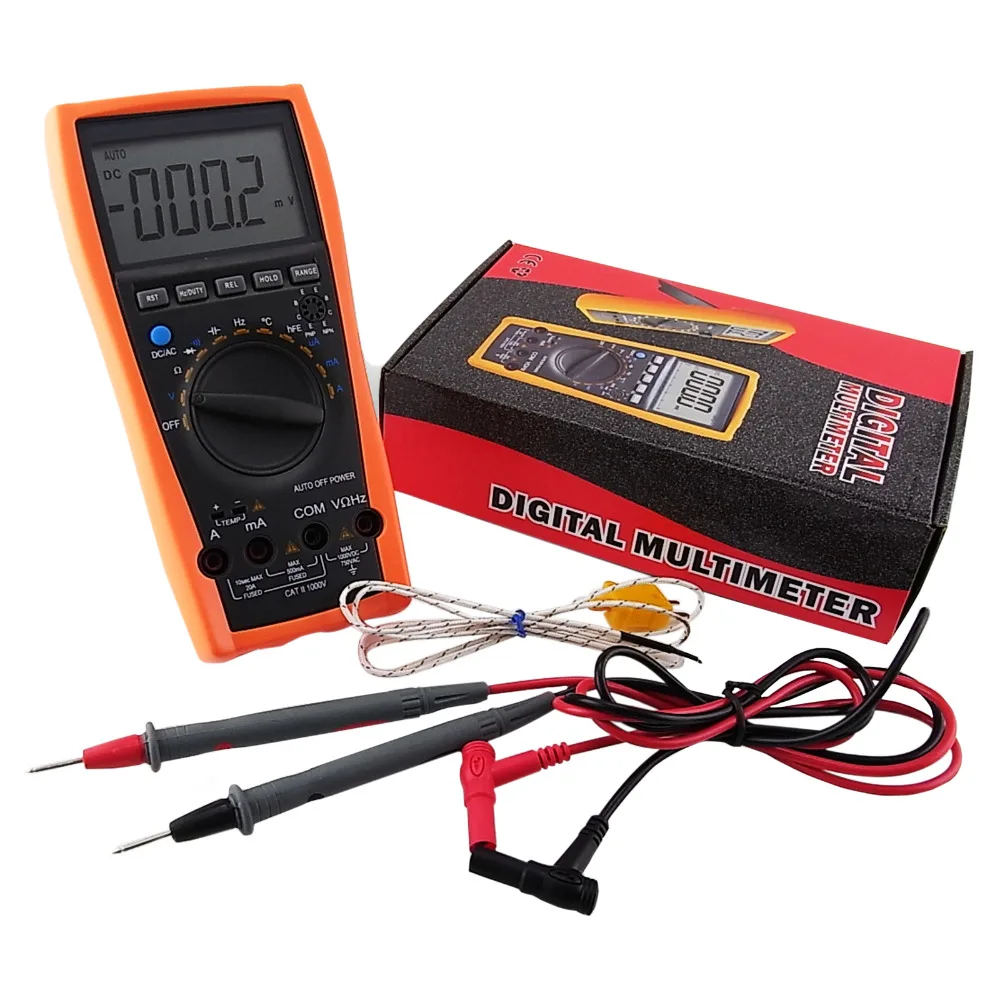

Set Included:
  • 1 x Auto/Manual Range Digital Multimeter
  • 1 x pair of Test Leads
  • 1 x K-Type Thermocouple Wire
  • 2 x 1.5V AAA batteries (included)
  • 1 x Non-slip Rubber Protection Cover
  • 1 x Instruction Manual
  • Standard Factory Package

PHOTO GALLERY

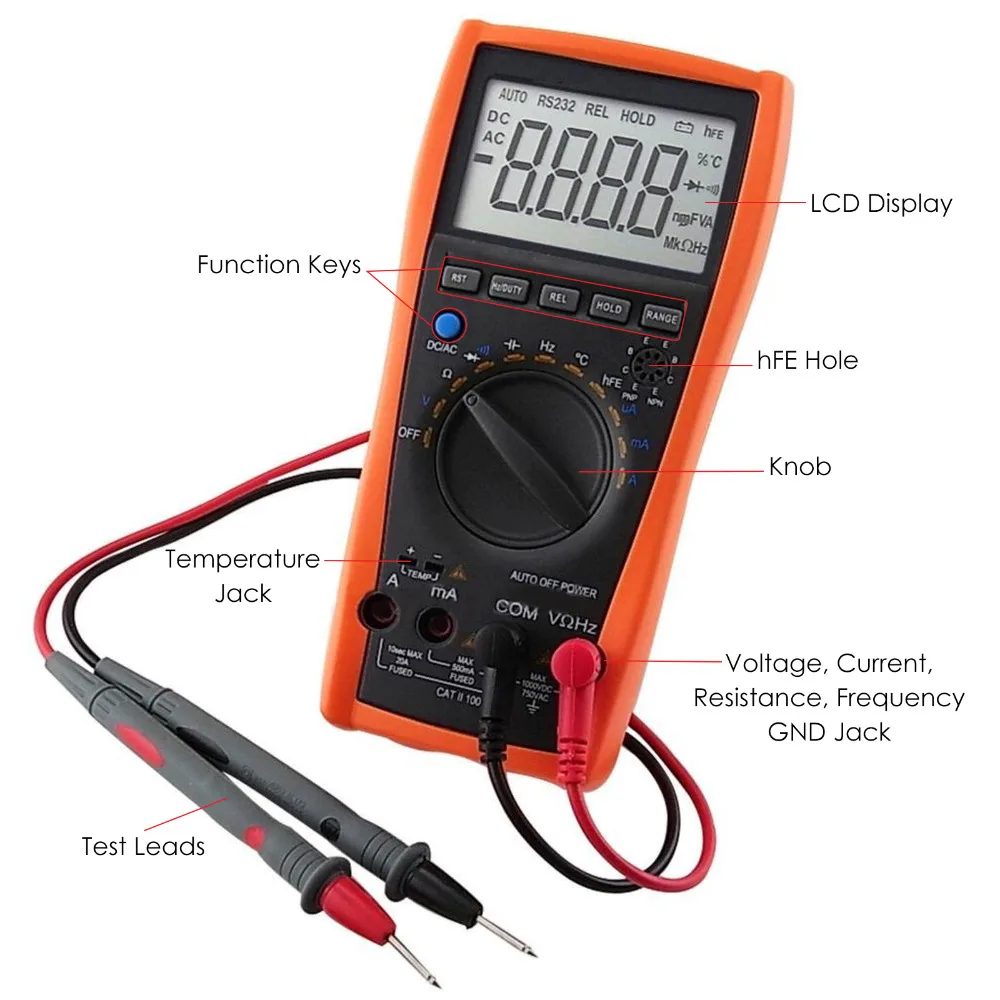

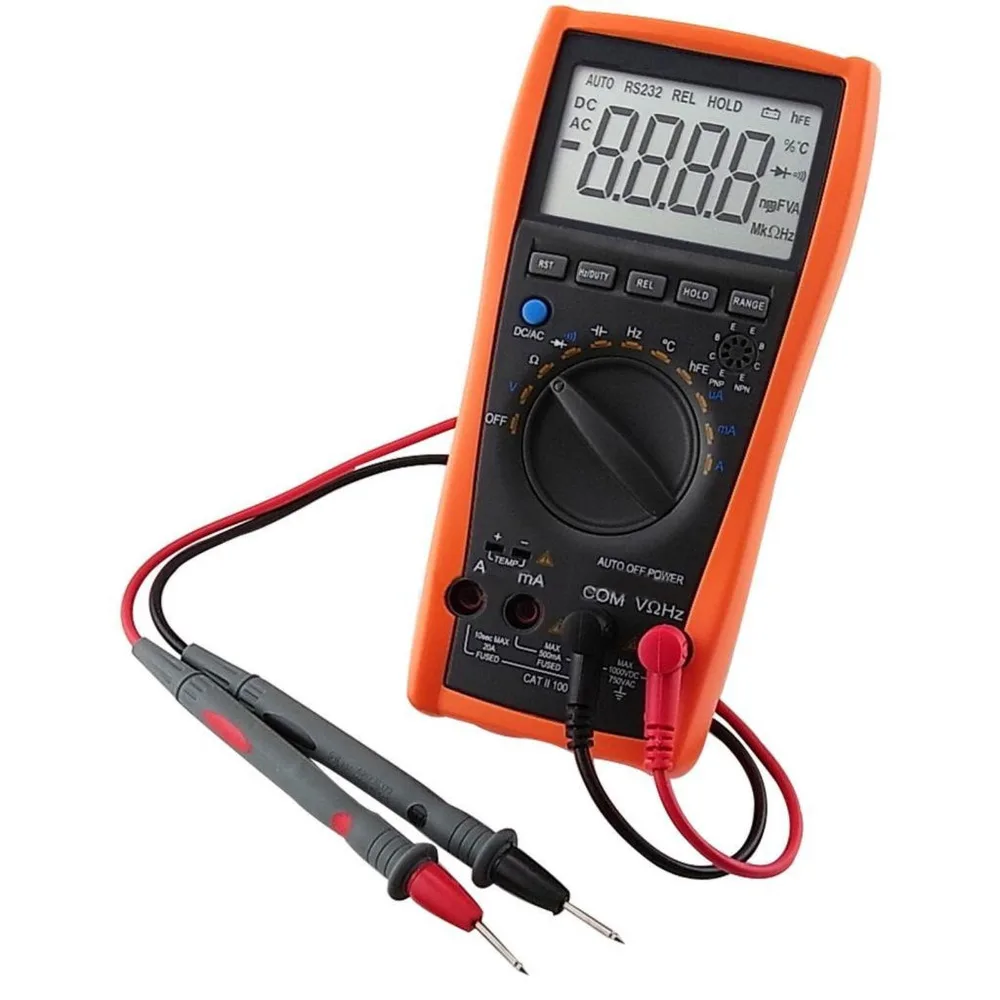

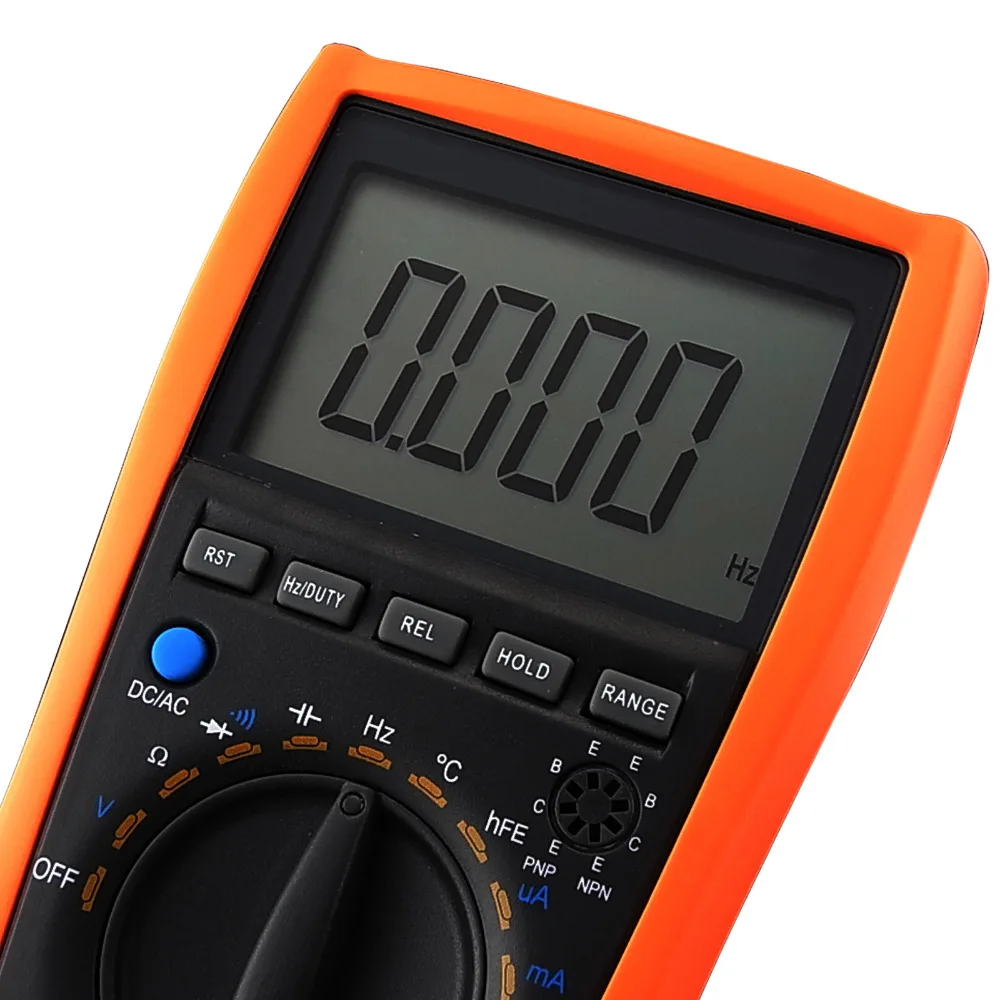

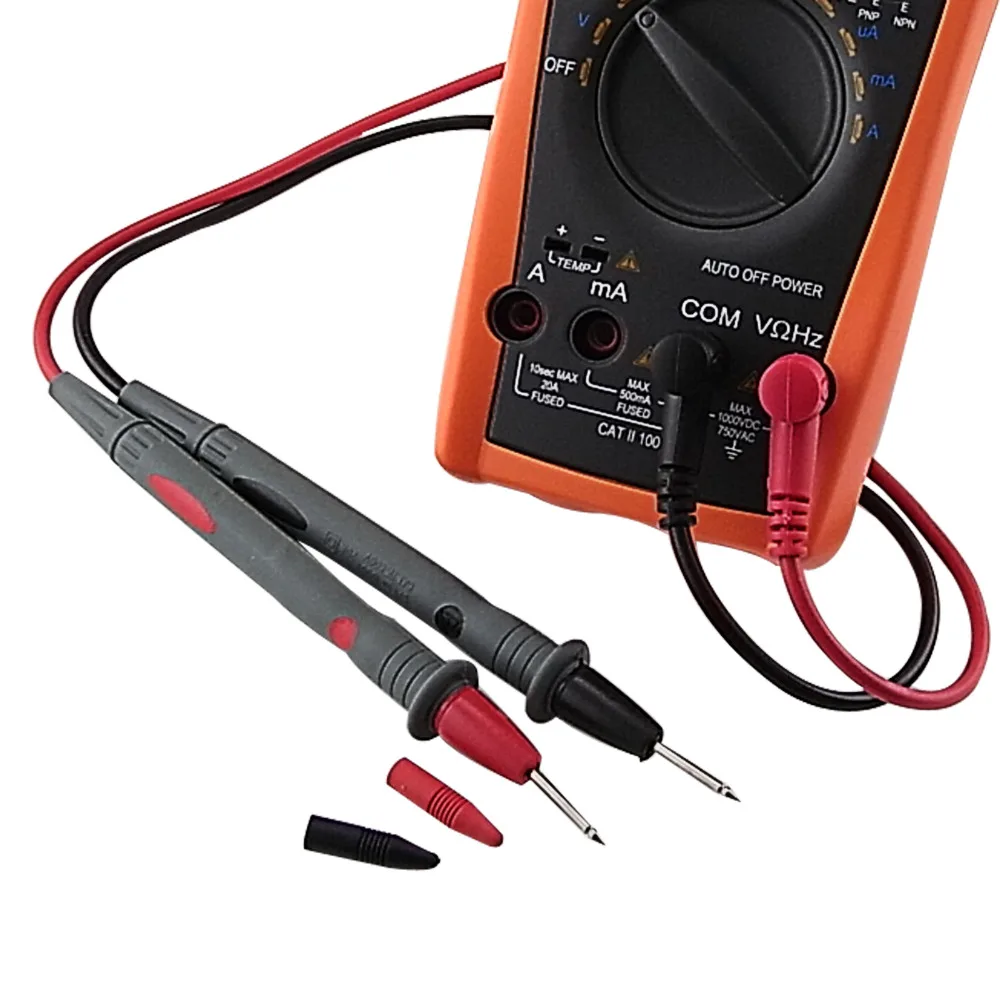

gain-express-gainexpress-Multimeter-VC-97-Partsgain-express-gainexpress-Multimeter-VC-97-Dimensiongain-express-gainexpress-Multimeter-VC-97-preview12-gain-express-gainexpress-Multimeter-VC-97-wholegain-express-gainexpress-Multimeter-VC-97-applicationgain-express-gainexpress-Multimeter-VC-97-connectgain-express-gainexpress-Multimeter-VC-97-input-jackgain-express-gainexpress-Multimeter-VC-97-LCD

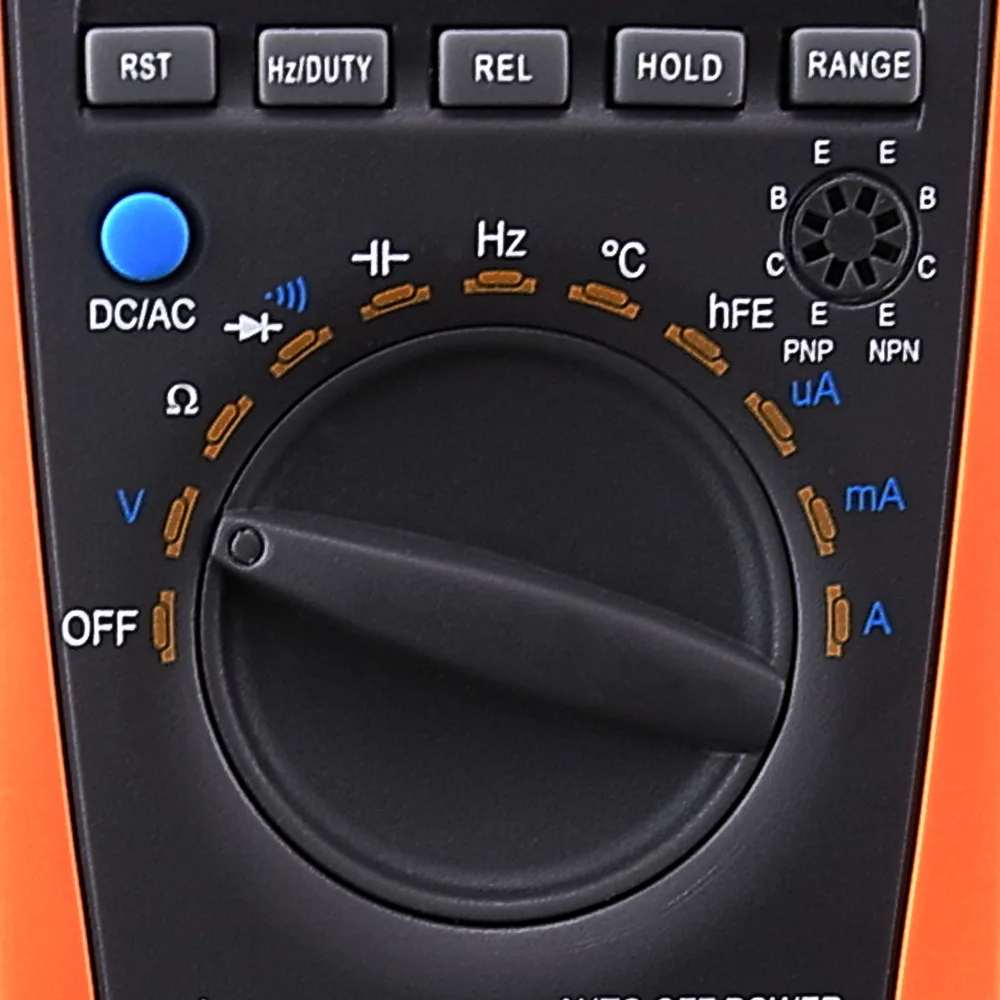

gain-express-gainexpress-Multimeter-VC-97-Wholegain-express-gainexpress-Multimeter-VC-97-specsgain-express-gainexpress-Multimeter-VC-97-standgain-express-gainexpress-Multimeter-VC-97-switchMultimeter-VC-97-Wholegain-express-gainexpress-Multimeter-VC-97-set
